THE COMPANY "ASTRUM AVIA SERVICE" CARRIES OUT DELIVERY OF SHORT-RANGE RADAR SYSTEMS
THE RADAR SYSTEM OF SHORT-RANGE
Our company provides the products manufactured by the Russian leader in the field of radar systems 3-mm range of different purposes. These systems, while retaining the properties of all-weather radar systems approach for the resolution and accuracy of measurement of coordinates to the optical system.
The enterprise-manufacturer is developing a multifunctional container for the modernization of radar combat training aircraft Yak-130 Jets and helicopter landing onboard precision radar, ground radar landing aircraft, radar aircraft search and rescue systems, special and civil purposes.
One of the most promising developments - on-board radar system "Visibility-2000", designed to ensure the safety of flights, take offs and landings, taxiing regional aircraft in adverse weather conditions.
This system allows all-weather autonomous (in the absence of an optical sight) to detect and obtain reliable information of high accuracy of the relative positions of the aircraft and the runway; detection of dangerous objects on the runway; providing taxiing the aircraft in conditions of reduced optical visibility; provision of mooring of the aircraft to the passenger terminal.
Enterprise Development - mini radar 3-mm range, providing all-weather day and night detection of dangerous objects in the vicinity of the landing takeoff in obtaining information of high accuracy of the relative positions of the helicopter, the Earth's surface and ground targets.
Extensive use of radar provides 3-mm range in the composition of the control systems of transport infrastructure, the automated systems of protection against unauthorized access, etc.
ONBOARD SYSTEM FOR GREATER SITUATIONAL AWARENESS «VISIBILITY-2000»
APPLICATION

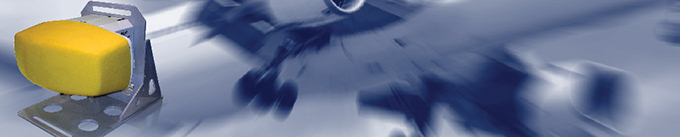

Onboard enhance situational awareness "Visibility-2000" based on the small-sized radar trehmillimetrovogo range is designed for safety, takeoffs and landings, taxiing regional aircraft in adverse weather conditions.
SOLVING PROBLEMS
- Individual all-weather (in the absence of an optical sight) to detect and obtain reliable information of high accuracy of the relative positions of the aircraft and the runway
- Detection of dangerous objects on the runway
- Providing taxiing the aircraft in conditions of reduced optical visibility
- Providing mooring of the aircraft to the passenger terminal
NEW QUALITY

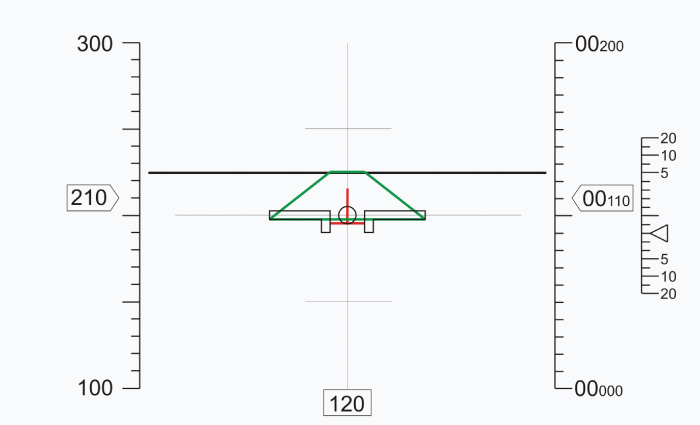

The system "Visibility-2000" has a high spatial resolution and provides:
- Detection and isolation on a background ground stationary and moving people and small-size equipment in the direction in real time motion of the aircraft;
- all-weather detection of hazardous man-made (wire, supports, pipes, buildings) and natural (relief irregularities) obstacles in the flight direction (front section);
- Search near a low altitude (up to 300m), man-made objects: cars, boats and boats, as well as people;
- detection of dangerous meteorological formations, including "wind shear" in the surface layer;
- is moored to the landing ramp;
- high electromagnetic compatibility.
MAIN CHARACTERISTICS
| The working range of wavelengths mm | 3 |
| Detection range in different weather conditions: | |
| Runways, taxiways, km | 3...6 |
| Surface markers (corners), km | 10...15 |
| The infrastructure of the airport, km | 6...8 |
| Equipment, km | 4...6 |
| Wires, km | 1,5...2,0 |
| Storm fronts, km | 50 |
| The accuracy of the runway axis, m | 6...8 |
| Mass, not more than, kg | 25 |
| Dimensions, mm | 380х625х500 |
MINI SOFTWARE radar LANDING 3 MM RANGE
APPLICATION

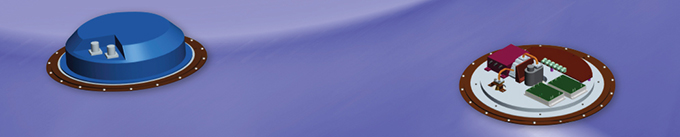

Mini helicopter landing radar 3 mm range is designed for all-weather day and night information safety of runway operations helicopters for various purposes, including in a difficult environment (snow, sand and other dust clouds created by the rotation of the helicopter propellers, rain, fog) on unprepared sites.
ABILITIES

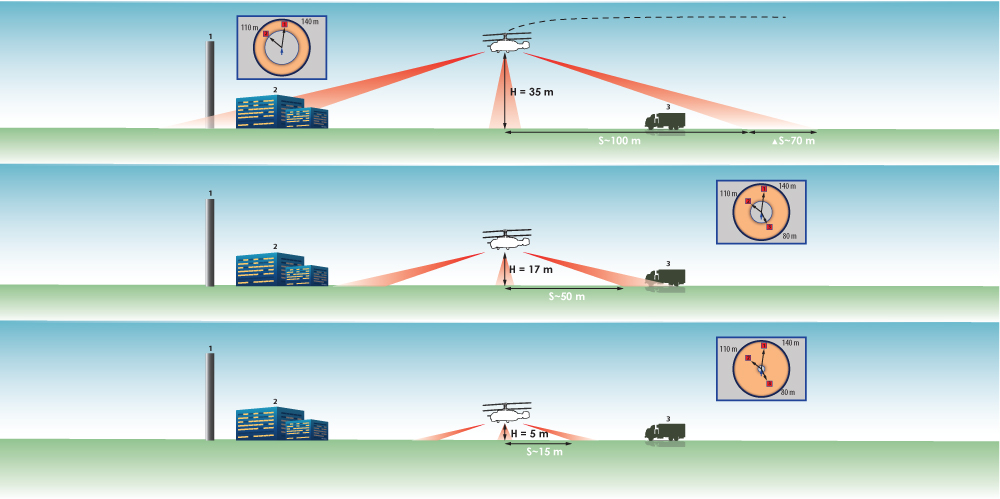

All-weather day and night detection of dangerous objects in the vicinity of the landing / take-off to obtain a high accuracy of the information on the relative positions of the helicopter, the Earth's surface and ground targets.
CHARACTERISTICS
Operating range of application range, m 3±300
Operating Frequency, GHz ~94
Detection range of rugged topography, m 50÷100
Automotive equipment, m 100÷300
Corner reflectors, m 200÷250
Ranging error to a flat surface (RMS), m ~1÷2
Sector overview:
- azimuth,° 360
- elevation, ±4
Resolution ability:
- azimuth,° ~8
- range, m ~8
Weight, kg 4÷5
Dimensions radar, mm Ø 270х150
Power Consumption, W ~120
