THE COMPANY "ASTRUM AVIA SERVICE" CARRIES OUT DELIVERIES OF ULTRA-WIDEBAND RADAR SYSTEMS (AIS SYSTEMS), MEASUREMENT ANTENNAS, AVIONICS AND ELECTRONIC WARFARE
ULTRAWIDEBAND RADAR SYSTEM AND MEASURING ANTENNA
Due to its high technical characteristics of UWB systems provide:
- control of EMC hardware
- located in the terminal area
- detection and localization of radiation sources
- radio control basic functions of the electromagnetic ether
- measurement of electromagnetic field parameters
- control emissions of radio-electronic means and high frequency devices (radio control)
- measurement of radio interference characteristics
- production control and certification of the working conditions at the workplace
- detection and control of biological hazards of electromagnetic radiation in order to take measures to protect them from the population
- normalizing the electromagnetic environment
- operational control of state power consumers socket, general purpose network 220 50 (60) Hz at the enterprises and in the home
- control of electromagnetic effects on the body.
These developments are indispensable in the fight against terrorism and in demand in radio physics, medicine, in IT, in monitoring systems.
APPLICATION
- control of electromagnetic compatibility (EMC) of hardware located in the terminal area;
- detection and localization of radiation sources; radio control basic functions of the electromagnetic ether;
- measurement of electromagnetic field parameters; control emissions of radio-electronic means and high frequency devices (radio control);
- measurement of radio interference characteristics of spurious emissions; production control and certification of the working conditions at the workplace; detection and control of biological hazards of electromagnetic radiation in order to take measures to protect them from the population;
- normalizing the electromagnetic environment;
- operational control of state power consumers socket, general purpose network 220 50 (60) Hz at the enterprises and in the home;
- control of electromagnetic effects on the body.
These developments are indispensable in the fight against terrorism and in demand in radio physics, medicine, in IT, in monitoring systems.
ANTENNA CHARACTERISTICS
|
Antenna modified bicones |
Spiral Horn circular polarization antenna |
Horn UWB antenna | |
| Frequency range at the level of (-10 dB) | 30 MHz-2,5 GHz | 500 MHz- 6 GHz | 500 Mhz -5 GHz |
| Sidelobe level - no more than | — | -30 dB | -35 dB |
|
Polarization |
Linear | Circular | Linear |
| Antenna impedance |
defined by the design | 50 ОHm | 50 ОHm |
| Ellipticity coefficient | — | 0,75 | — |
| UWB antenna "Vivaldi" | Multiphase UWB antenna "Vivaldi" | ||
| Frequency range at the level of (-10 dB) | 1- 10 GHz | 1- 10 GHz | |
| Sidelobe level - no more than | -30 dB | -30 dB | |
| Polarization | Linear | Circular | |
| Ellipticity coefficient | — | 0,82 |
APPLICATION AREA:
Indispensable to create:
- UWB radar systems based active array antennas,
- REP advanced systems,
- detection and localization of UWB radiation sources are needed in the field of information technology connectivity between Computer peripherals
- in medicine,
- in radio physics,
- for monitoring.

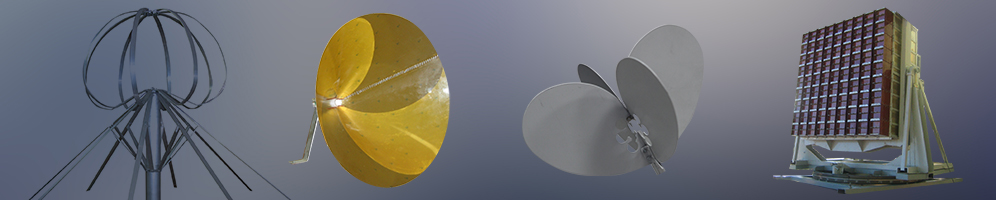

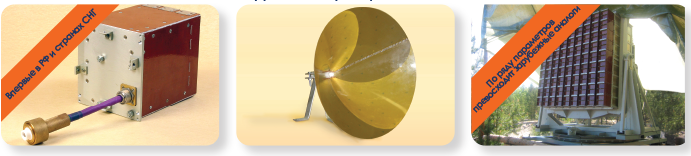

Perspective UWB antenna The complex for
UWB antenna for measurement systems with circular polarization electromagnetic effects
Compact UWB horn antenna Spiral horn UWB antenna Module AESA on the basis of a
circular polarization compact UWB horn antenna
At the International Exhibition-Congress "High Technologies. Innovation. Investments ¬їsaid products awarded I degree diploma and a gold medal in the category" New high-tech equipment and the development of high technologies ".
The information on this website is not a public offer and is for informational purposes only.
For more information on the prices of products or services, please contact our managers.
Your personal information is confidential and will only be used to send you commercial offers.
